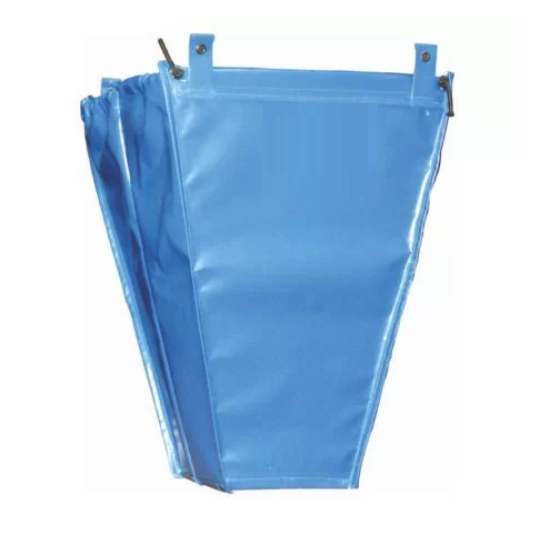

Taper Mould Skirts

Taper Mould Skirts stop your parts from scattering randomly in the ‘drop zone’. Mould Chutes ensure your parts land on your conveyor or in your packing case and not on the floor. Please view/select the options in the table down below.
Name Width (mm)Length (mm)Open (mm)
TMS20-B41 200410200
TMS25-B43250430250
TMS30-B46300460300
TMS35-B48350480350
TMS40-B51400510400
TMS45-B53450530450
TMS50-B56500560500
TMS55-B58550580550
TMS60-B60600600600
TMS65-B63650630650
TMS70-B66700660700
TMS75-B69750690750
TMS80-B71800710800
TMS85-B74850740850
TMS90-B76900760900
TMS95-B79950790950
TMS100-B8110008101000
TMS105-B8410508401050



Tapered Mould Skirts are made of durable plastic with a PVC lining in the bottom to protect even the most delicate moulding. The unique construction will not absorb oil or grease and is abrasion, puncture, and tear resistant.

Features

Less Scrap
Reduce Contamination
Increase Profits
Easy Installation
Quick Access to the Mould
Movable to Other Machines

Chute Kit Contains

1 Mould Curtain
Mounting hardware required
The number of attaching magnets for the Chute

If you would like us to cover some of the additional questions you might have, please get in touch.



Please select a model from the table above to continue
