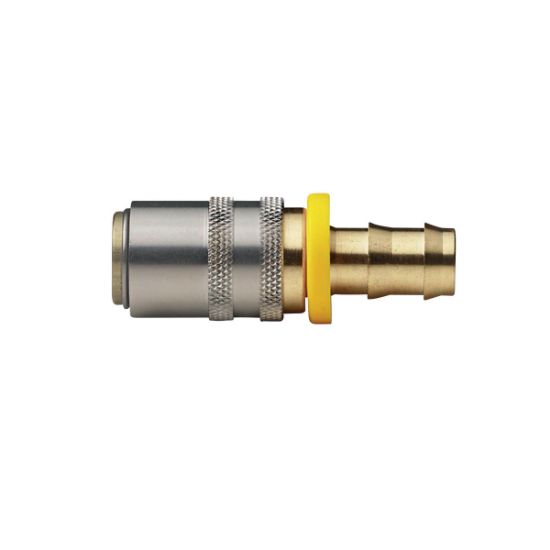

Coupling Straight Tail (Push-Lock)

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.
NameValveØ (mm)L (mm)L1 (mm)A (mm)D (mm)Qty (pcs)
09K10V-PLyes65828101810
09K10-PLno65828101810
13K13V-PLyes96428132310
13K13-PLno96428132310
