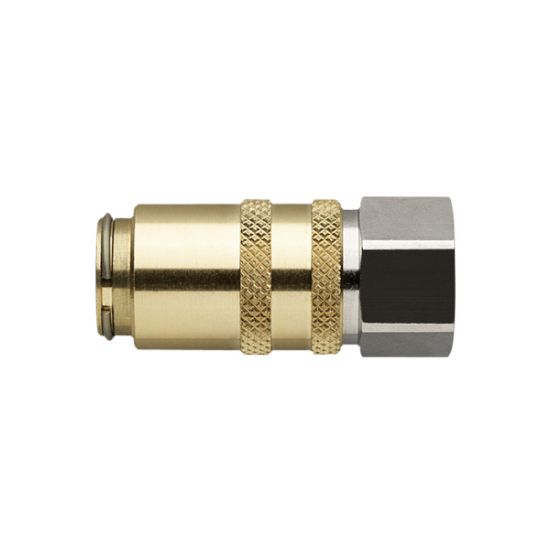

Coupling Female Thread

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	Valve	SW	Ø (mm)	L (mm)	L1 (mm)	A (mm)	D (mm)	Qty (pcs)
09KIR1/4V	yes	17	6	41	10	G1/4	18	10
09KIR1/4	no	17	6	41	10	G1/4	18	10
09KIR3/8V	yes	19	6	45	10	G3/8	18	10
09KIR3/8	no	19	6	45	10	G3/8	18	10
13KIM16V	yes	21	9	46	10	M16x1,5	23	10
13KIM16	no	21	9	46	10	M16x1,5	23	10
13KIR1/4V	yes	21	9	46	10	G1/4	23	10
13KIR1/4	no	21	9	46	10	G1/4	23	10
13KIR3/8V	yes	21	9	46	10	G3/8	23	10
13KIR3/8	no	21	9	46	10	G3/8	23	10
