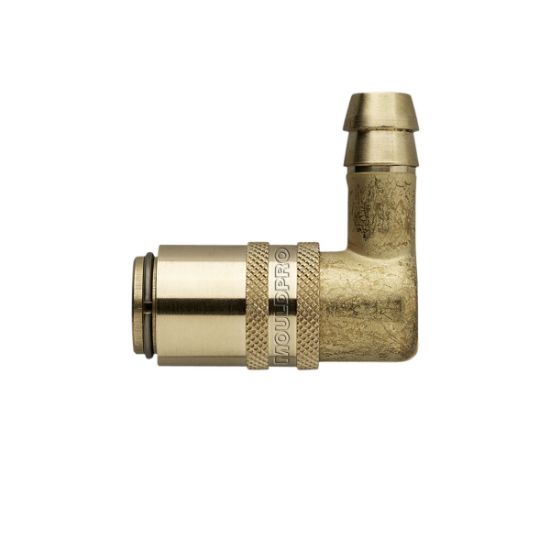

Coupling 90° Tail

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	Valve	Ø (mm)	L (mm)	L1 (mm)	A (mm)	D (mm)	Qty (pcs)
09K10V-90	yes	6	41	22	10	18	10
09K10-90	no	6	41	22	10	18	10
13K10V-90	yes	9	51	28	13	23	10
13K10-90	no	9	51	28	13	23	10
13K13V-90	yes	9	51	28	13	23	10
13K13-90	no	9	51	28	13	23	10
19K19V-90	yes	13	78	32	19	32	10
19K19-90	no	13	78	32	19	32	10
