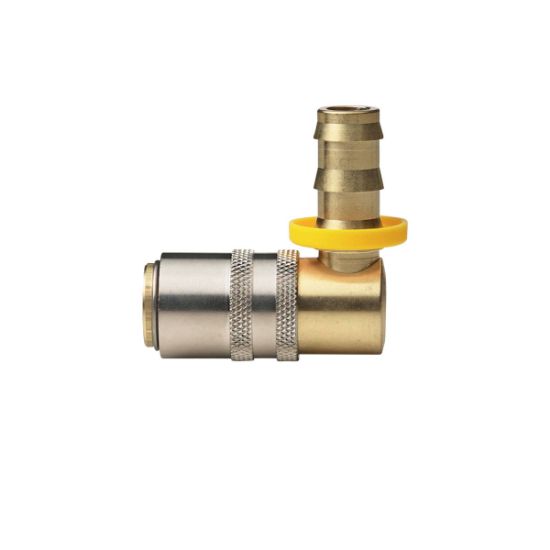

Coupling 90° Tail (Push-Lock)

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.
NameValveØ (mm)L (mm)L1 (mm)A (mm)D (mm)Qty (pcs)
09K10V-90-PLyes64228101810
09K10-90-PLno64228101810
13K13V-90-PLyes95128132310
13K13-90-PLno95128132310
