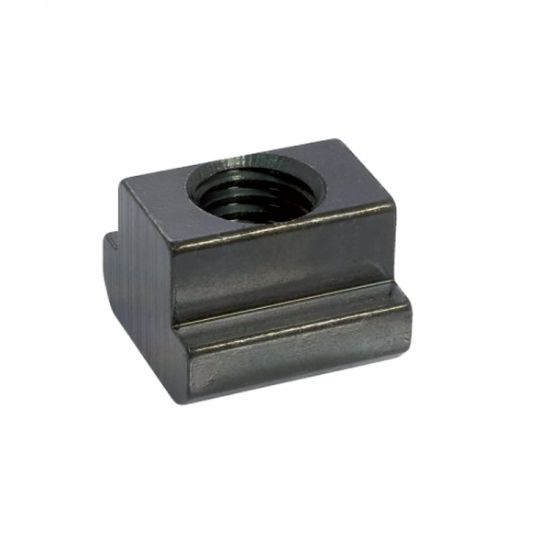

T-Nut

T-Nuts suit for mould clamps. • DIN 508 • Material Ck45 DIN • Hardness 30-32 HRC
NameK (mm)Thread DA (mm)E (mm)H (mm)
508.M6.86M67.71310
508.M8.106M89.71512
508.M8.127M811,71814
508.M10.127M1011,71814
508.M8.148M813,72216
508.M10.148M1013,72216
508.M12.148M1213,72216
508.M8.169M815,72518
508.M10.169M1015,72518
508.M12.169M1215,72518
508.M14.169M1415,72518
508.M8.1810M817,72820
508.M10.1810M1017,72820
508.M12.1810M1217,72820
508.M14.1810M1417,72820
508.M16.1810M1617,72820
508.M16.2012M1619,73224
508.M18.2012M1819,73224
508.M16.2214M1621,73528
508.M16.2416M1623,74032
508.M18.2214M1821,73528
508.M20.2214M2021,73528
508.M20.2416M2023,74032
508.M22.2416M2223,74032
508.M16.2818M1627,74436
508.M20.2818M2027,74436
508.M22.2818M2227,74436
508.M24.2818M2427,74436
508.M24.3622M2435,65444
508.M30.3622M3035,65444


Please select a model from the table above to continue

Please login to view prices
